Access doors may be a relatively small component of a ventilation system, but selecting and installing the right solution can make an important difference to accessibility, airtightness and the overall performance of the ductwork.

As a manufacturer of access doors and other ventilation components, EVHA Vendor Member METU Meinig AG has shared several practical points to consider when selecting and installing access doors.

Why the Correct Access Door Matters

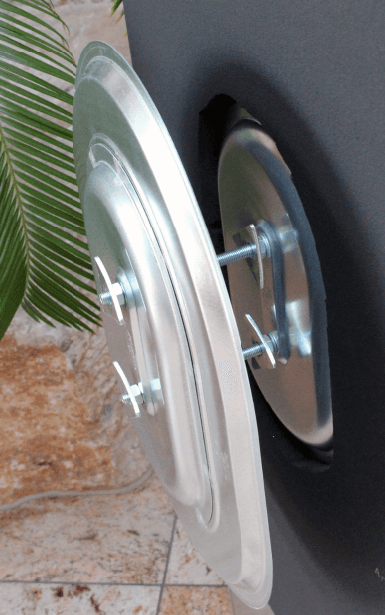

Access doors provide access to ventilation ductwork for inspection, maintenance and cleaning. However, not every access door is suitable for every application.

The dimensions and shape of the duct, insulation, available installation space and the required airtightness all need to be considered when selecting the appropriate solution.

This is also why access doors are available in a wide range of sizes and designs rather than as a single standard solution.

Choosing the Right Size

The size of the access door should correspond not only to the dimensions of the duct but also to its intended purpose.

Access requirements may differ depending on whether the opening is needed for visual inspection, maintenance or physical access for cleaning equipment.

METU therefore offers access doors in a wide range of dimensions to accommodate different duct sizes and applications.

Insulated Ductwork Requires the Right Access Door

One issue METU frequently encounters is the use of non-insulated access doors on insulated ventilation ducts.

Even when the ductwork itself is properly insulated, an inappropriate access door can create a weak point in the insulation system and negatively affect its overall performance.

For insulated ductwork, the access solution should therefore be selected with the insulation requirements of the complete system in mind.

Installation on Fittings – What to Consider

Ideally, access doors are installed on suitable straight sections of ductwork. In practice, however, this is not always possible.

Space limitations or the design of the ventilation system may require an access door to be installed on a fitting or another more complicated surface.

Such installations require additional consideration because fitting an access door correctly to curved or irregular surfaces can be more difficult.

Where installation on a fitting cannot be avoided, the type and size of the access door as well as the geometry of the installation area should be carefully considered.

Airtightness and Certification

Airtightness is another important factor when selecting components for ventilation ductwork.

Different airtightness classifications are used within the industry, and understanding the applicable requirements is important when selecting an appropriate access solution.

The access door should not unnecessarily compromise the performance expected from the duct system as a whole.

METU recommends considering not only the dimensions and installation method, but also the quality, airtightness and relevant certification of the access door when comparing available solutions.

Selecting the Right Solution

There is therefore no single access door that is ideal for every ventilation system.

Before selecting a product, consider:

• the size and shape of the duct,

• the purpose and required level of access,

• whether the ductwork is insulated,

• the location and surface on which the door will be installed,

• airtightness requirements,

• and relevant technical requirements or certification.

For applications where the appropriate solution is not obvious, obtaining advice from the manufacturer can help avoid problems during installation and operation.

Ask METU

METU Meinig AG is an EVHA Vendor Member and manufacturer of access doors and technical components for ventilation systems.

If you have a technical question, need help selecting an appropriate access door or would like further information about the solutions mentioned in this article, you can contact the METU team directly.

Technical contact:

Stavros Theodossiou, METU Meinig AG

E-mail: info@metu.de

Website: METU.de

Technical content for this article was provided by METU Meinig AG, EVHA Vendor Member.
